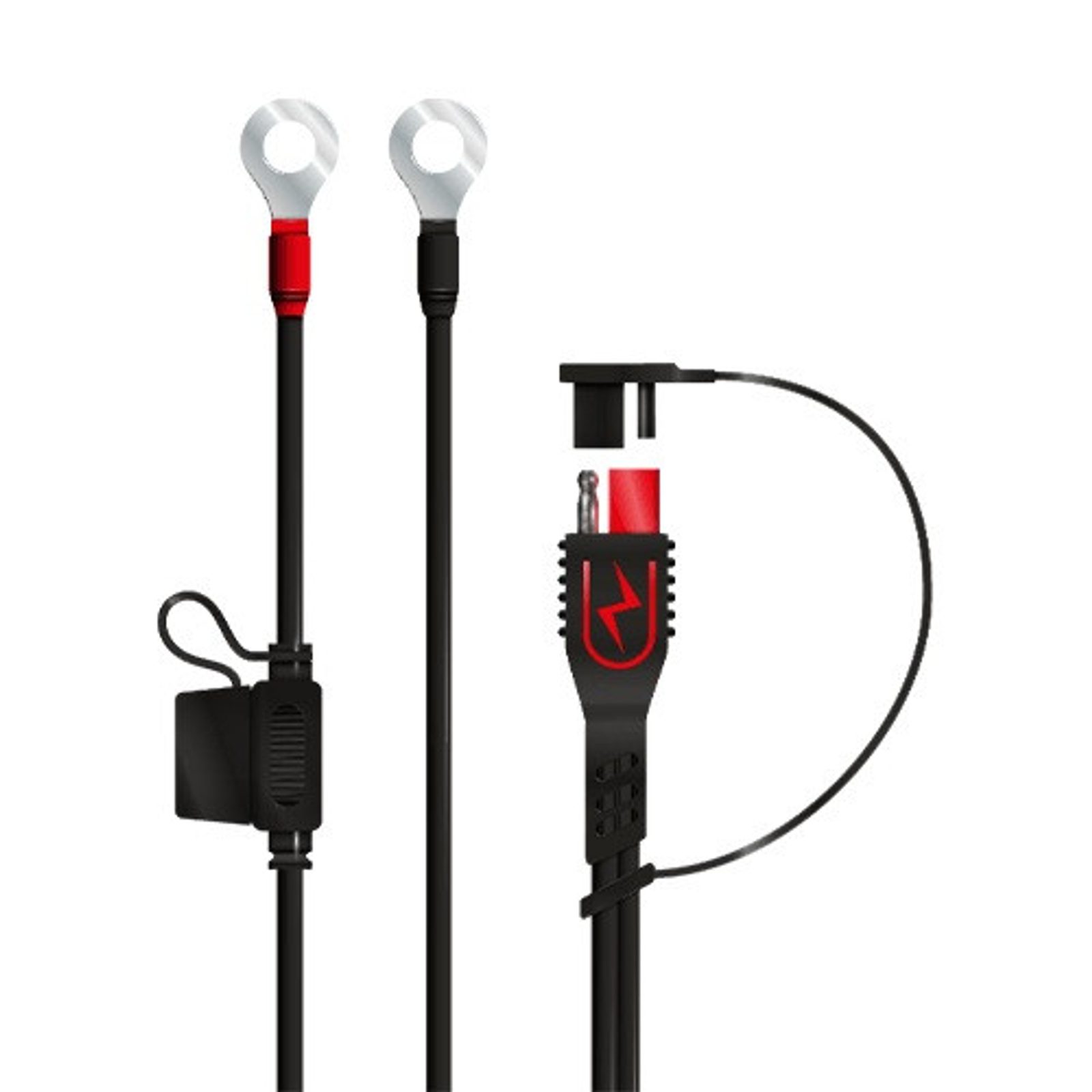

Fused ring terminal leadset BS-BATTERY PA01

This connection is the ideal solution if your battery is difficult to access, hidden or if you cannot use clamps. Just connect the eyelet terminals to the battery and charge normally. This accessory is compatible with all BS Chargers.

FEATURES

• Fused Ring Terminal Leadset: Ideal solution if your battery is difficult to access
• For all 12V vehicle and motorcycles batteries  Easy to connect:
  - Connect red eyelet on positive battery terminal (+)
  - Connect black eyelet on negative battery terminal (-)

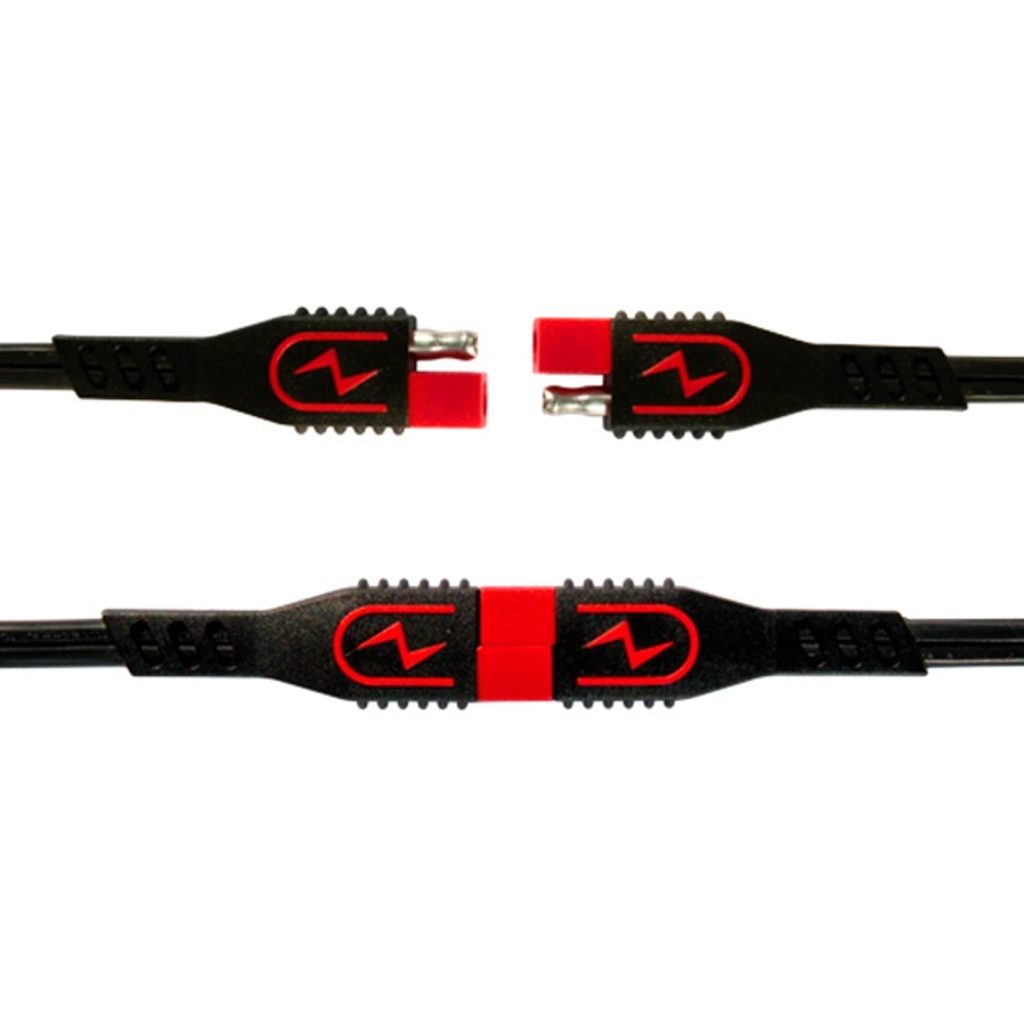

  - Connect this accessory to the quick connection of your BS Charger
• 2 x M6 eyelets (1/4")
• 3A Fuse
• Wire 61 cm (24.00")/ 0.82mm² (18AWG)
• Safe: connection spark free, reverse polarity, short circuit and internal overheat protection

PDF Instruction manual PA01
PDF Data sheet - technický list PA01
