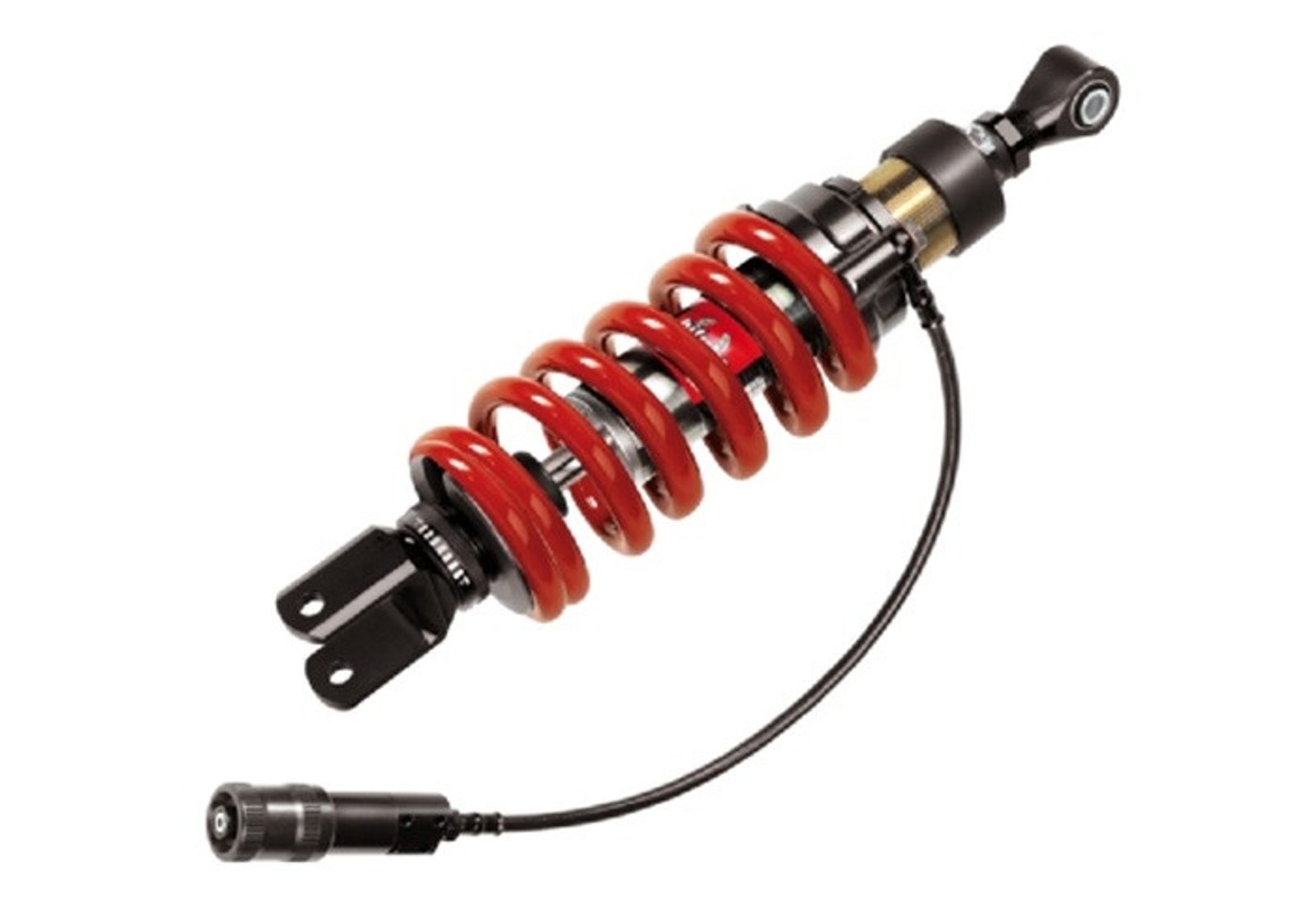

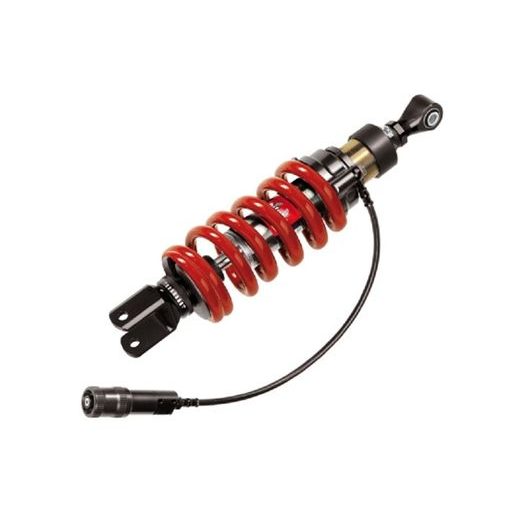

Rear monoshock BITUBO XZE3 with hydraulic spring preload

The third step of the series is enriched by the hydraulic spring preload, which is easy to use whenever necessary to tailor the set-up to suit the load.

TECHNICAL FEATURES

Gas (Nitrogen) pressurized shock absorber with oil/gas floating piston. Steel body, Ø 14 mm steel rod with low friction surface treatment and CNC machined billet Ergal heads.

ADJUSTABLE IN:

Hydraulic Spring preload: 10 mm

Rebound: 7 clicks

Adjustable length: 10 mm

AVAILABLE VERSION: XZE 31 red spring designed for racing bike model, XZE 32 black spring designed for classic bike models

INCLUDED IN THE PACK: Specific mounting instruction, Suspension manual

POSSIBILE ACCESSORIES: Ergal hand-wheel for preload adjuster.

PDF Catalogue BITUBO 2025
