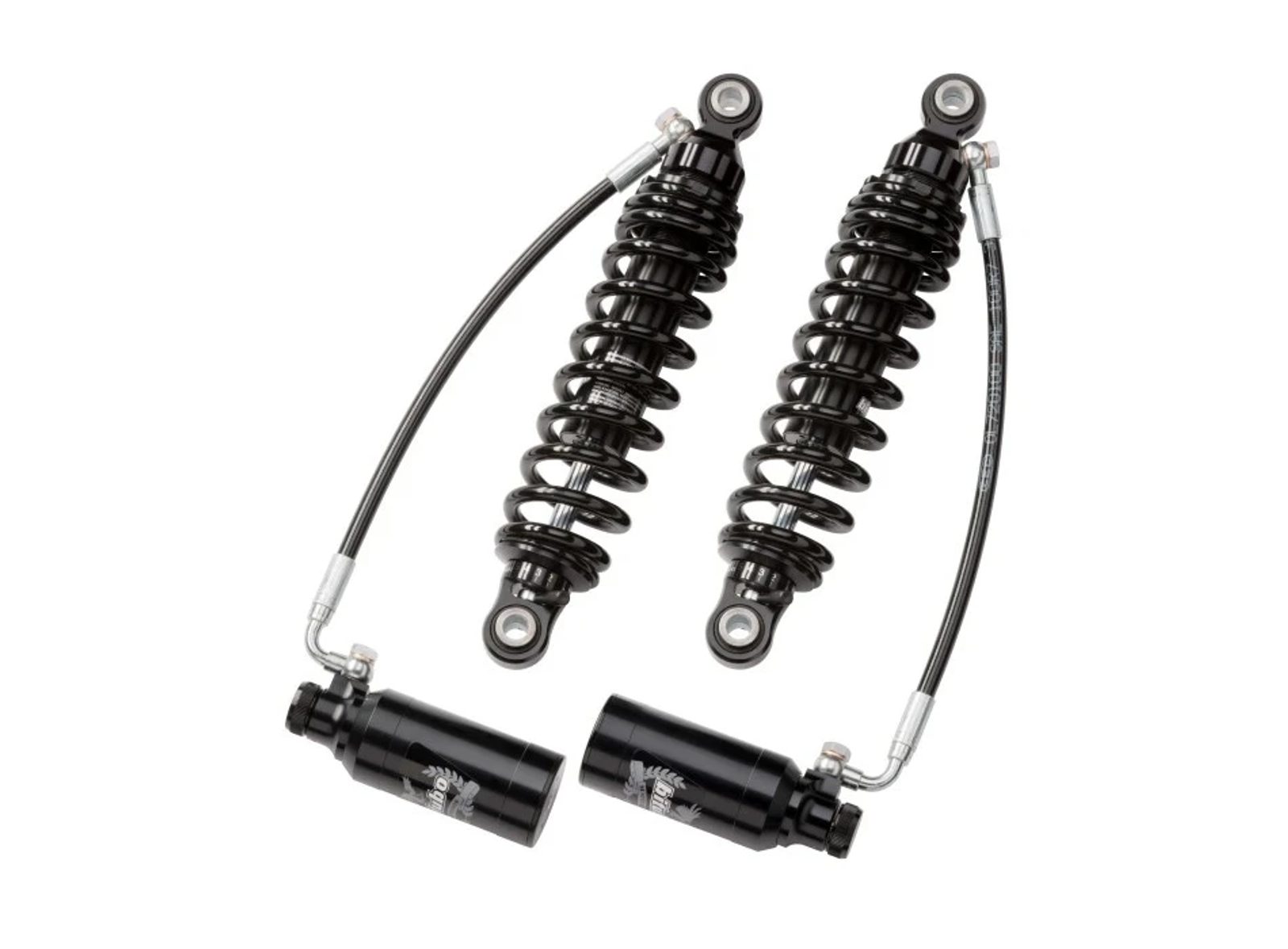

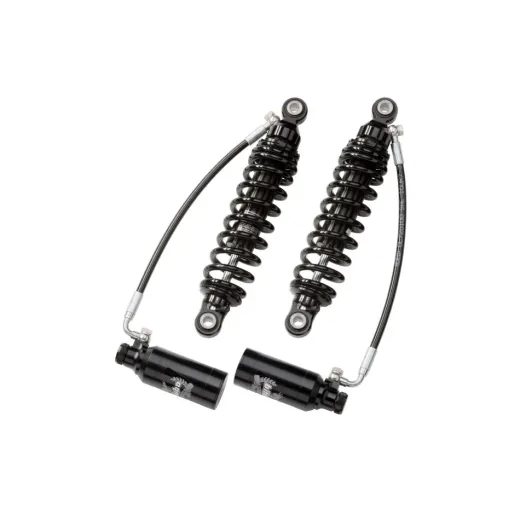

Rear twinshock BITUBO adjustable: spring preload,rebound, compression DARK EDITION

New WMM shock absorbers with separate bowl designed and handcrafted in Italy by expert World Champions of racing suspension specifically for HD Touring models from 2014.

Easily adjustable with an exposed remote reservoir featuring a 12-click compression knob, 5-position rebound adjuster lever, 0.5" of travel, and a threaded preload dial to help dial in the stroke for maximum performance. Fully rebuildable and rebuildable, they include mounting brackets, preload adjustment tool, and a LONG-LIFE warranty.

TECHNICAL FEATURES:
Shock absorber body made of high-strength alloy steel, 12mm steel shaft, separate aluminum compensation chamber, gas pressurized (Nitrogen), with oil/gas floating piston separator. Heads in aluminum alloy machined from solid and precision CNC machined.

ADJUSTMENTS:

Spring preload fine adjustment with millimetric ring

INCLUDED IN THE PACKAGE:
Application specific fitting instructions, Mounts, Suspension Manual and tool to make preload adjustments.

MODEL AVAILABLE FOR : Harley Davidson

PDF Mounting sheet 1 - montážní list 1
PDF Mounting sheet 2 - montážní list 2
